Reset cylinder Sharp AL-2050CS copier

The Sharp copiers, after a long time, have problems with the cylinder, these need to be restored, here is the solution to your problem.

Most copiers Sharp AL series to reach the number 15,000 copies we feel the need to change the cylinder unit, the manufacturer of this equipment assumes that you have reached a number of pages in which it is necessary to replace this unit because the quality of the pages will not be the same.
Another is that we count the money or the ability to acquire the cylinder unit, sometimes often very costly and others simply not abundant by our surroundings.

But we can not worry because if the quality you are getting is considerable with the unity that we can reset this and print approximately 15,000 more copies approximate.
cylinder sharp al-2050cs
cylinder sharp al-2050cs

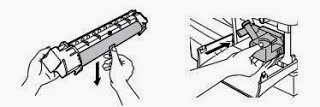

When this error occurs in our copiers appears flashes a light in our front menu that has the shape of a tube, we know that is the error cylinder because the party is the cylinder when it is put into the printer appears the same image.

Normally this is located in a larger image corresponding to a printer and we indicate exactly where in the printer that is causing the error.
sharp cylinder unit
sharp cylinder unit
Following is the procedure to reset the drum unit into the copier SHARP AL-2050CS, proceed as follows arises in case of problems please contact us, we will gladly help you.

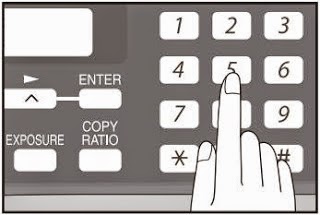

Turned on and presenting the error, copier we are at the main panel and we will press a sequence of buttons, which are those that say below...
keyboard sharp
keyboard sharp

  • Press the button (#) this is found in the bottom right
  • Then press the button (*) this is in the bottom left
  • Then press the (C) button located on the right side, this is used to erase
  • Again we press the button (*) this is in the bottom left
  • Now when our screen turns white mark number (24) is achieved by first dialing the number 2 and then number 4
  • Press the button to make copies (Start) This is the green key that we use to start copying.
  • We mark again another number in this case (7) and press the key (Start) back into the right side of the copied.
