How to install ink system Epson Stylus SX130

Advertisements
Install a continuous ink system Epson printers, is one of easier tasks related to system installation, only we need to buy a quality system and have suitable inks for these printers.
Putting the right ink on Epson printer will always be paramount, use inks of poor quality or that is not compatible damage the printer so that it may be cheaper to buy another.

You can get a system for Epson on the Internet if there is a store of printers easily get buy one.
epson ink system with ink tanks
epson ink system with ink tanks
When you put the ink system is not lower cartridges immediately have a protective cartridge that does not allow air out, should pull the air hose or forcing the ink comes to them from the tanks.

Careful to put the ink in the cartridges, identify which corresponds each color, it will be easier when you buy a system with corresponding colors like image, then image and make the ink reach cartridges system Epson.
cause ink cartridges reach Epson system
cause ink cartridges reach Epson system
If you see the slow process when you extract air, we recommend removing the portion having air from the syringe and tanks supplying air system in the smallest of the system. see image below
move the ink cartridge tanks
move the ink cartridge tanks
You should put such cartridges which are, that allow us to completely fill and stop putting air to exit the ink, when about to reach the needle.


If you know the components of a continuous system, you know that must have when buying brackets, which serve to position the hoses inside the printer and avoid jams, which we will use in the Epson printer will need to provide a way to better adaptation.

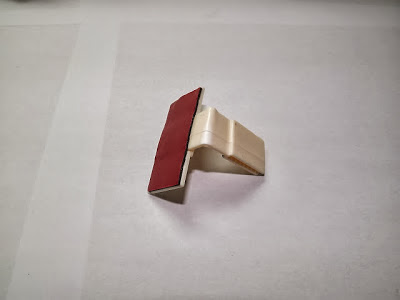

epson support hose system
epson support hose system
Do everything as shown in the picture, before being placed on the carriage easier. Everything must be done with the printer turned off, thus can manipulate the carriage smoothly.

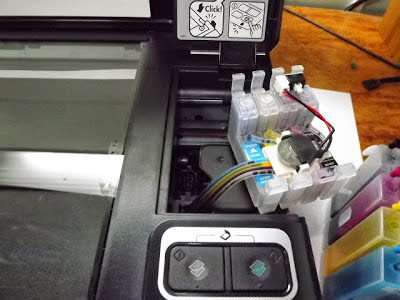

ink cartridges connected system
ink cartridges connected system
The next step is to put the system into the printer, for which it is recommended to take the car to the end and enter the cartridge and connected to the system, it will be necessary to turn some cartridges to fit properly. (do not remove any part of the printer)

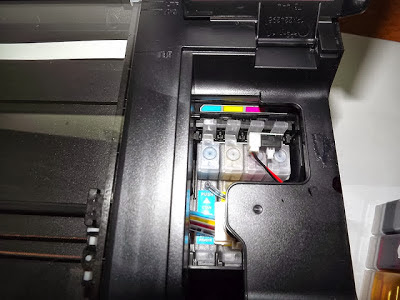

ink cartridges in the printer and system
ink cartridges in the printer and system
The last step is to position the hoses do not carriage jams while printing, you must know that it is necessary to give the amount of hose system to both the right and left of the path and position the part that hold the hoses in the right place as it is shown in the image.
hoses ink system epson
hoses ink system epson
Finally you will only need to close the door leading to the cartridges and place another piece to hold the hoses to the right of the printer. see image below...
finished ink system instalation
finished ink system instalation
Now you only need to start printing any suggestion or different method of installation, type a comment in this publication will gladly help you.
